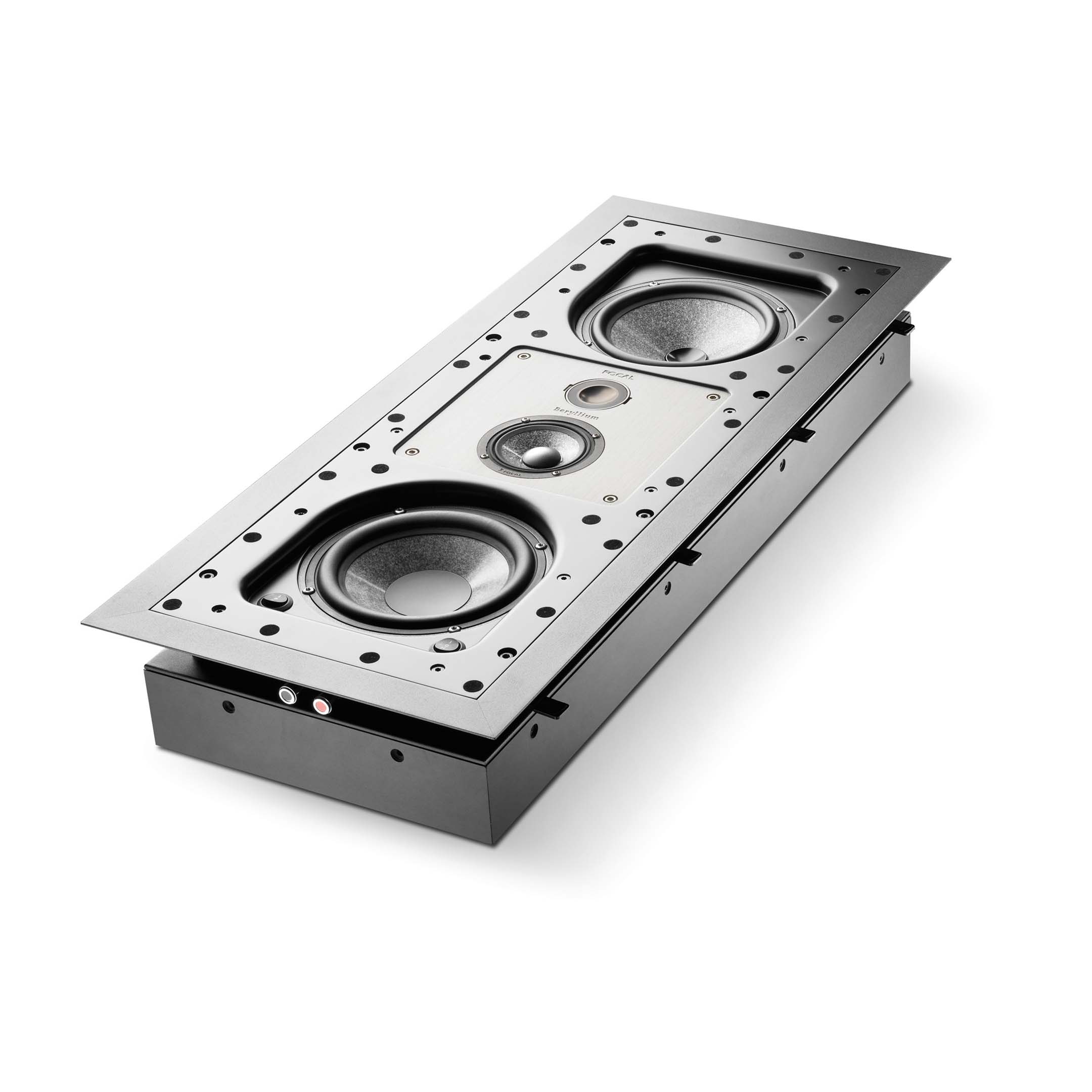

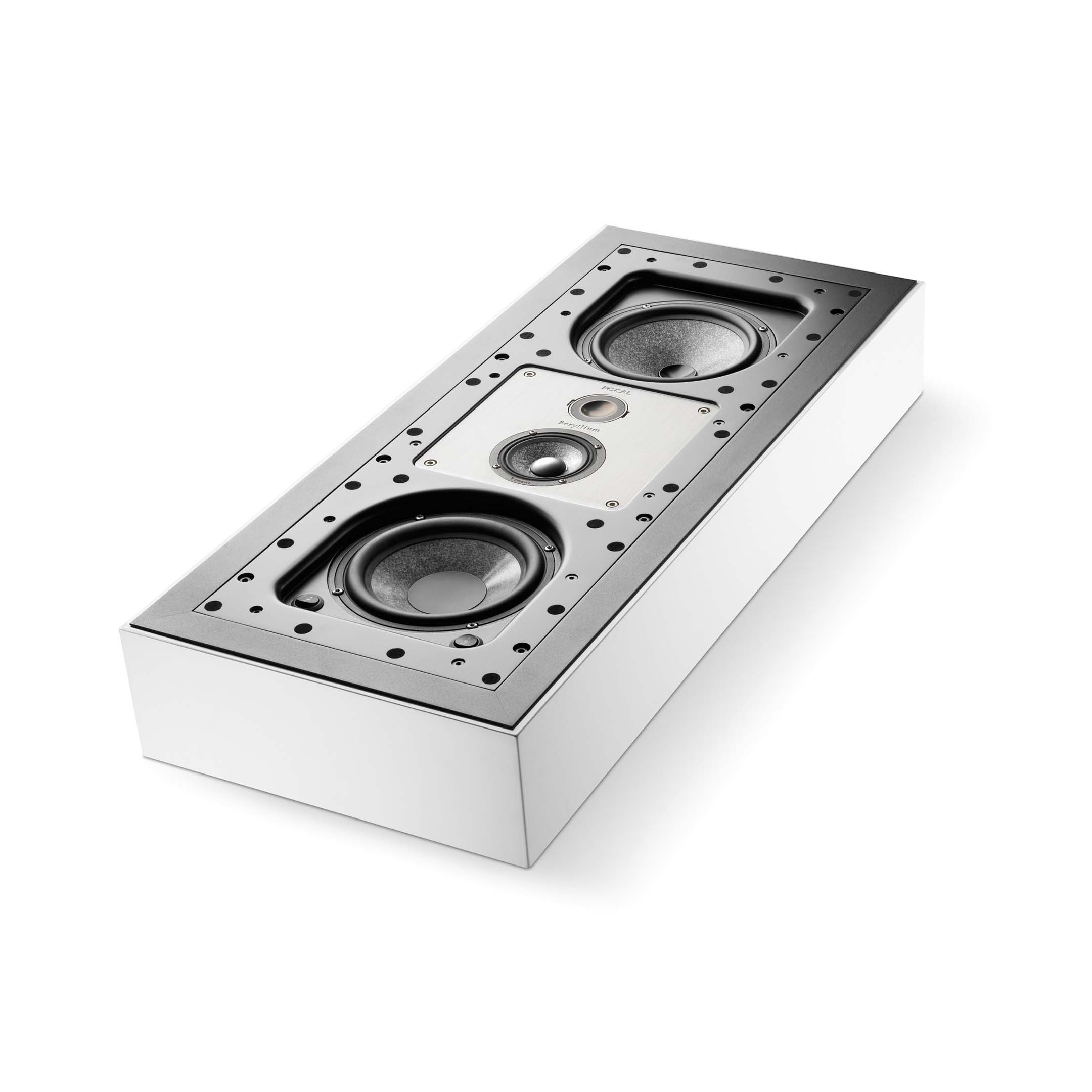

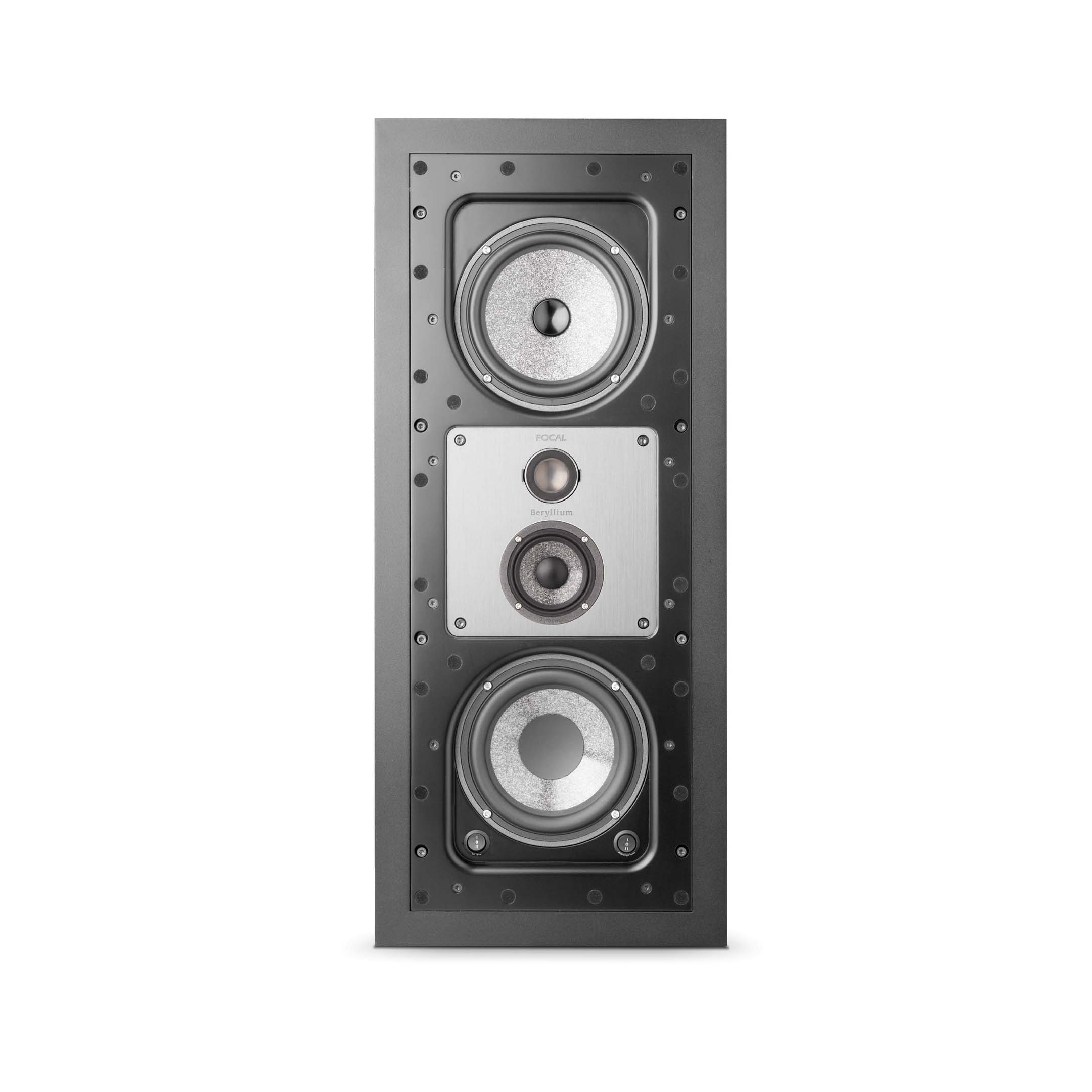

Focal IW1003 Be
True technology concentrate, the Electra IW1003 Be integrates the best of Focal: Beryllium IAL tweeter, Utopia III latest generation ‘W’ cones, OPC filtering, passive radiator, this reference In-Wall loudspeaker is the high-end traditional alternative loudspeaker.
True compact alternative to the traditional high-end 3 way loudspeaker
Easy and quick installation
Speaker drivers developed and manufactured in France by Focal

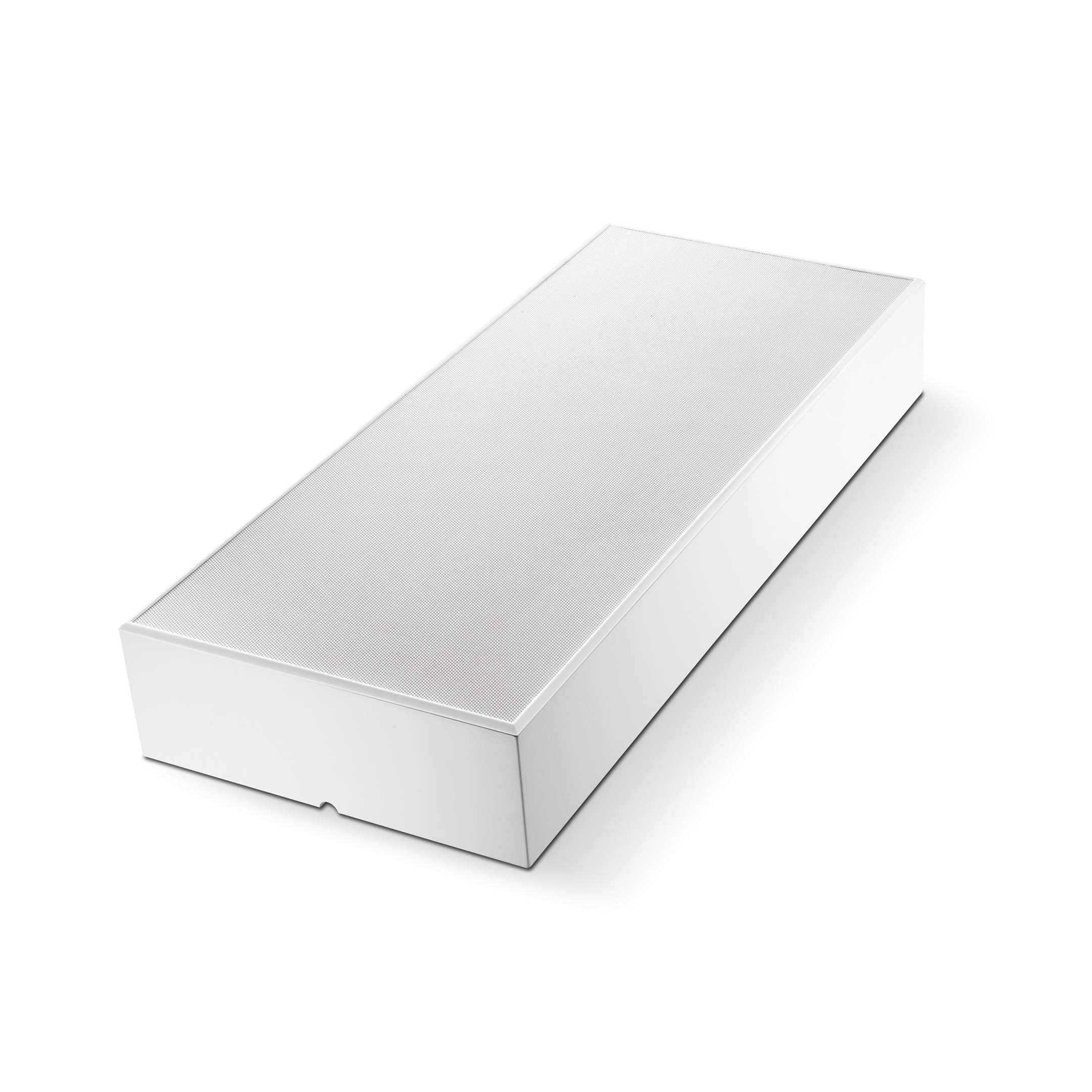

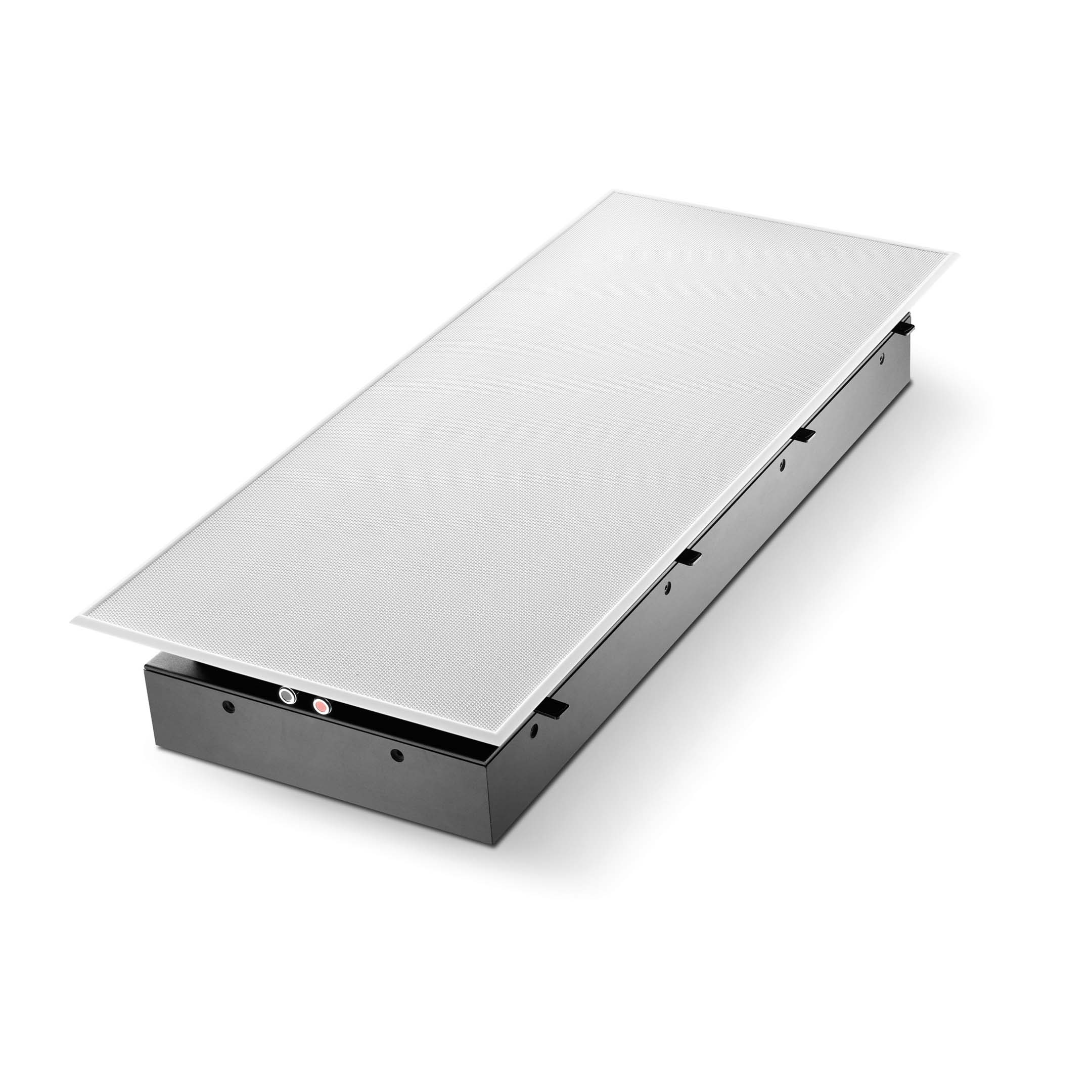

Ready-to-paint grille
Type | 3-way In-Wall sealed speaker |

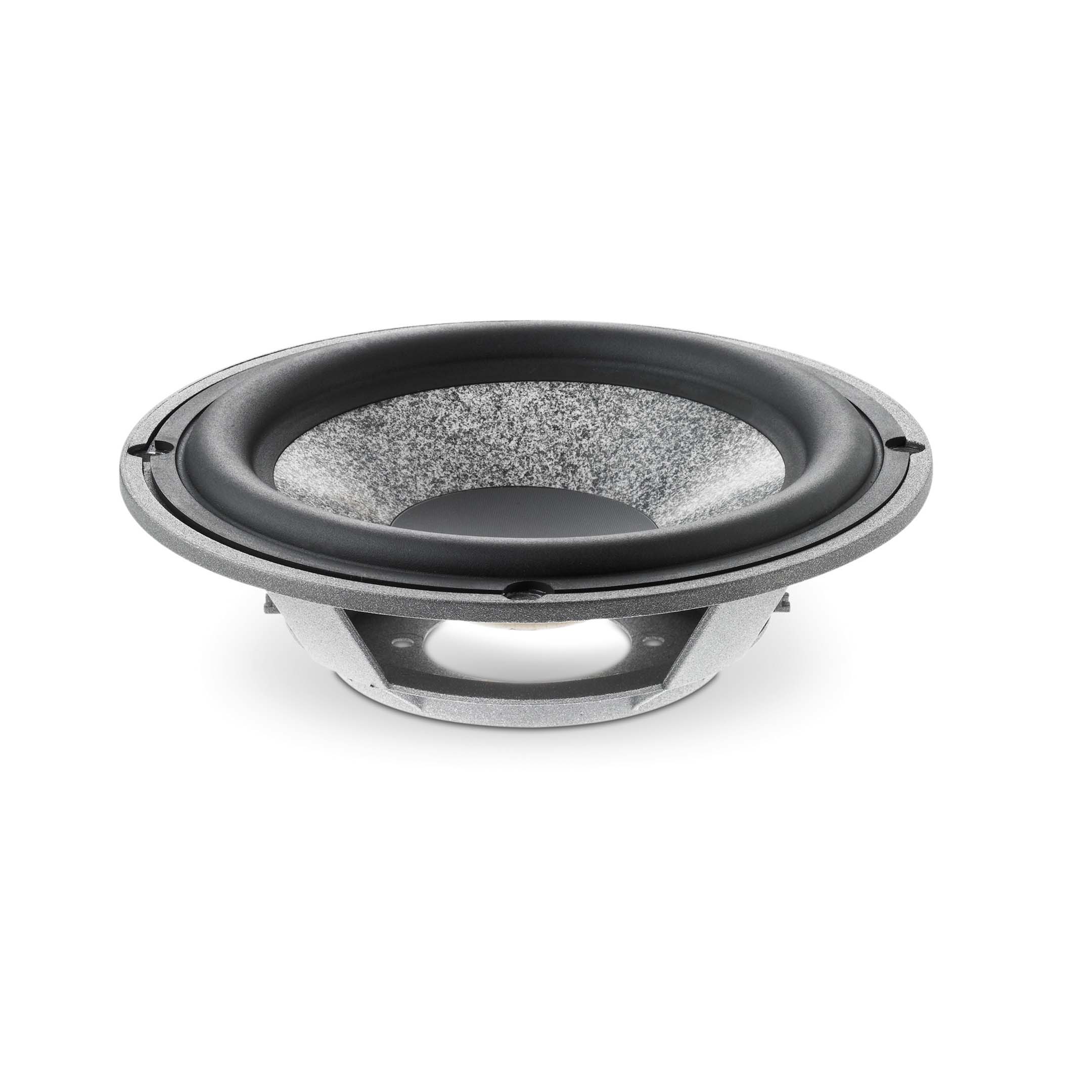

Drivers | 61/2” (16.5cm) ‘W’ passive radiator 61/2” (16.5cm) ‘W’ woofer 3″ (8cm) ‘W’ midrange 11/4” (27mm) Be IAL inverted dome tweeter |
Frequency response (±3dB) | 49Hz-40kHz |
Sensitivity (2.83V/1m) | 90dB |
Nominal impedance | 8 Ω |
Recommended amplifier power | 25-240W |
Tweeter adjustment Midrange adjustment | -3dB / 0dB / +3dB -3dB / 0dB / +3dB |
Crossover frequency | 400Hz / 2,000Hz |
Frame size: – with grille – without grille | 121/8” x 2715/16” – (03/16” thick) (308x710mm – (4.5mm thick)) 113/4” x 279/16” – (01/16” thick) (298x700mm – (1.5mm thick)) |
Cut-out dimensions (HxW) | 261/8” x 103/8” (664x262mm) |
Depth from wall | 37/8” (99mm) |
Net weight | 22lbs (10kg) |
