Focal IW1002

With its sealed volume and its advanced technology including the Al/Mg dome tweeter of the Electra 1000 S line, the IW1002 offers high-level sound performance in Hi-Fi as in multichannel systems, such as a 2-way traditional high-end loudspeaker would do. A very high-fidelity sound in an In-Wall version.

• True compact alternative to the traditional high-end 2-way loudspeaker

• Easy and quick installation

• Optional mounting kit (for walls under construction)

• Speaker drivers developed and manufactured in France by Focal

• Type	2-way In-Wall sealed speaker
  Drivers	61/2” (16.5cm) ‘W’ midbass 11/4” (27mm) Al/Mg inverted dome tweeter
  Frequency response (±3dB)	60Hz-30.5kHz
  Sensitivity (2.83V/1m)	88dB
  Nominal impedance	8Ω
  Recommended amplifier power	25-150W
  Tweeter adjustment	-3dB / 0dB / +3dB
  Crossover frequency	2,600Hz
  Frame size: – with grille – without grille	163/4” x 121/8” – 03/16” thick (425x308mm – 4.5mm thick) 161/3” x 113/4” – 01/16” thick (415x298mm – 1.5mm thick)
  Cut-out dimensions (HxW)	1415/16” x 103/8” (379x262mm)
  Depth from wall	37/8” (99mm)
  Net weight	14.1lbs (6.4kg)

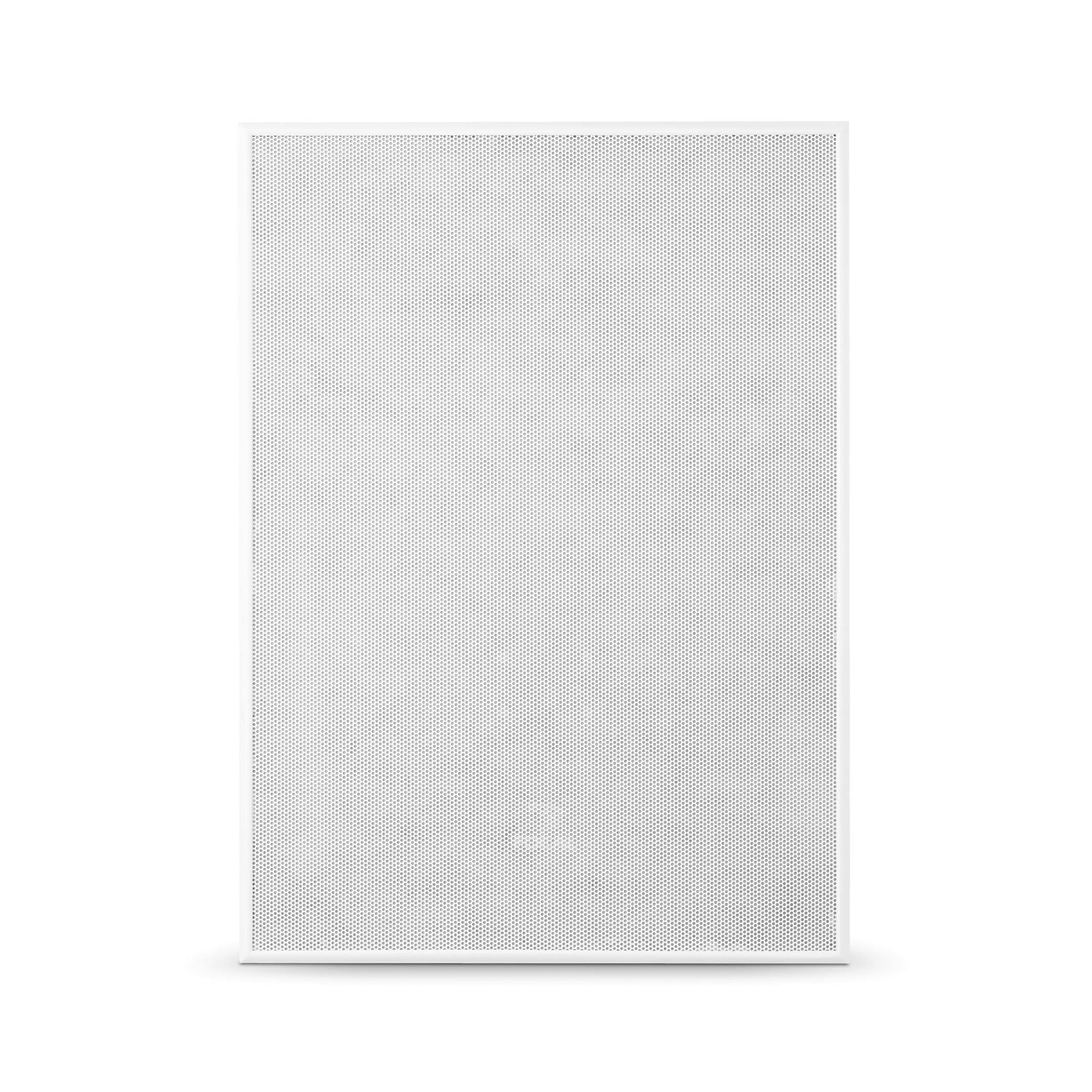

• Ready-to-paint grille
