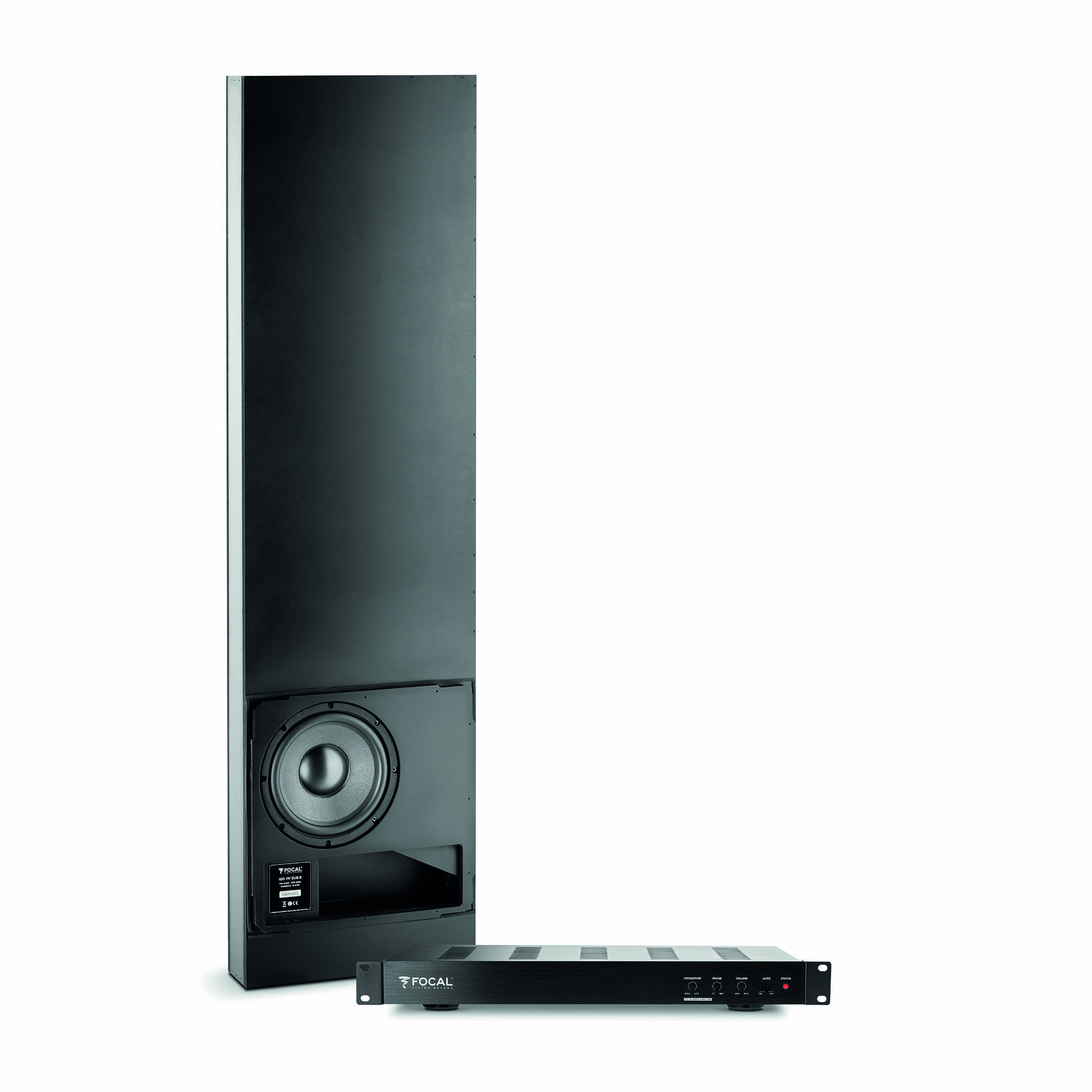

Focal 100 IWSUB8 Pack 1
100 IWSUB8 Amplifier is a high-power subwoofer amplifier designed for integration, with rack-mountable design. It is able to power up to two 100 IWSUB8 passive subwoofers connected in parallel.
100 IWSUB8 is a high power passive bass-reflex subwoofer designed for 16″ OC studs in-wall installation. This is an ideal complement to an audio-video installation based on Focal 100 Series products. This subwoofer is intended to be powered by 100 IWSUB8 Amplifier. Up to two 100 IWSUB8 subwoofers can be connected in parallel to this amplifier.
- Peak power 200W, continuous power 150W under 4Ώ.
- Amplifier able to drive 2 x 100 IWSUB8 subwoofers connected in parallel.
- High-level electronic protection.
- Bass-reflex subwoofer with 30Hz low-cut frequency.
- Low depth fitting 16″ OC studs in-wall installation.
- Nominal impedance of 8 ohms, able to be connected by pairs with 100 IWSUB8 Amplifier.
Amplifier
Type | Subwoofer amplifier |
Power (continuous) | Max 200W, 150W continuous (4Ώ) |
Minimum load | 4Ώ |
Voltage range | 100-120V~60Hz / 220-230V~50Hz |
Power consumption | 150W |
Stand-by power consumption | 0.5W |
Bandwith | 20-250Hz |
Subsonic filter | 18dB/oct. |
Inputs | LFE, Line in L/R |
Outputs | Line out L/R and subwoofer power output on speaker terminal |
Cord | Detachable IEC power cord |
Protection | Dynamic power control, thermal protection, short circuit, fuse, and over-current protection |
Dimensions (HxWxD) | 13/4 (21/16 with stands) x 167/8 (19 with brackets) x 101/8” [44.5 x 429 x 257mm] |
Net weight | 6.8lbs (3.1kg) |
Subwoofer
Type | Passive subwoofer |
Speakers | 8″ (21cm) Polyglass Woofer |
Bandwith (+/-3dB) | 34-140Hz |
Cut-off frequency (-6dB) | 30Hz |
Nominal impedance | 8Ώ |
Recommended amp power | Max 200W / 4Ώ |
Dimensions (WxDxH) | 137/8 x 37/8 x 513/16” (352 x 98 x 1,300mm) |
Cut-out dimensions (WxH) | 137/8 x 513/16” (352 x 1,300mm) |
Depth from wall | 33/8” (86mm) |
Net weight | 32.3lbs (14.6kg) |
