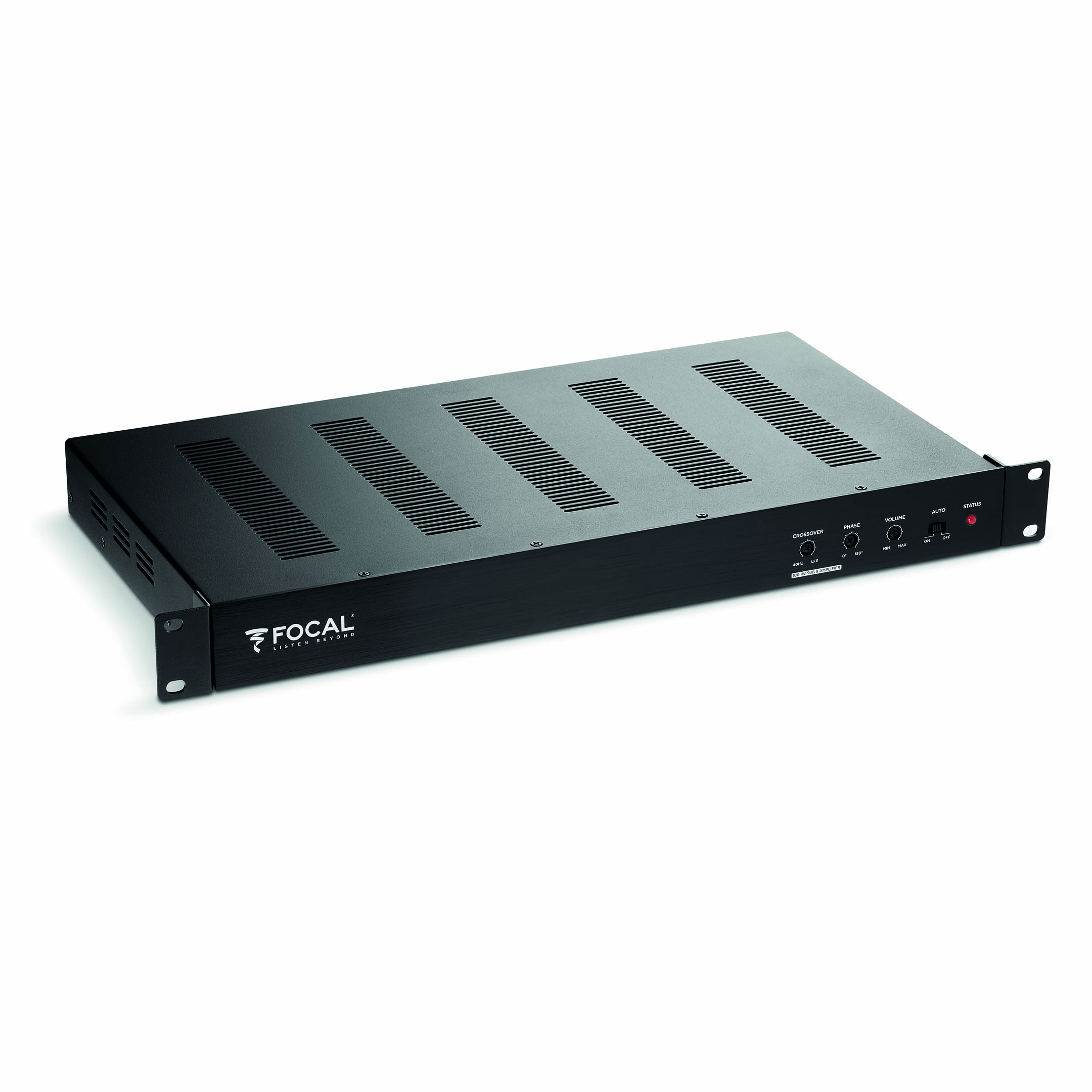

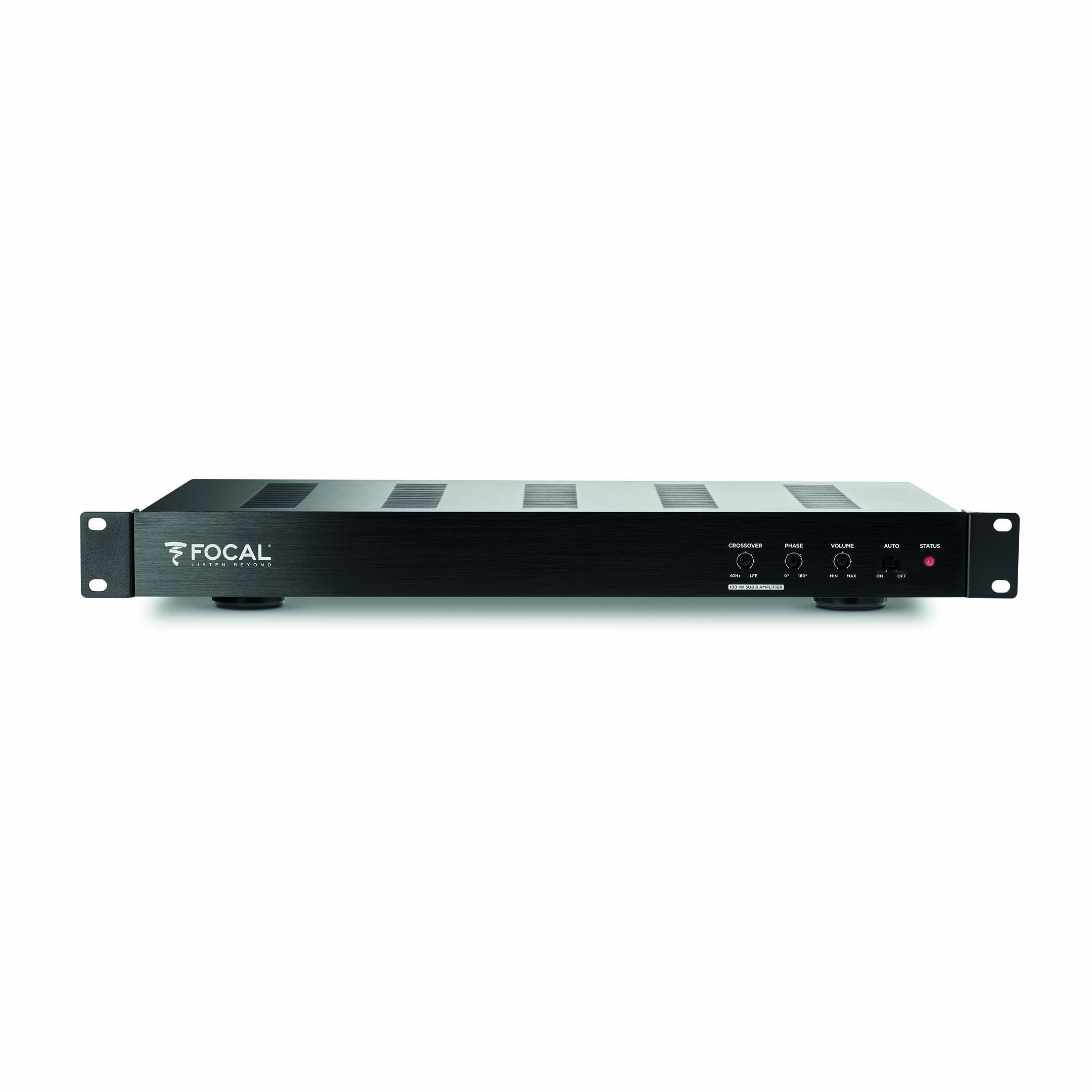

Focal 100 IWSUB8 Amplifier
100 IWSUB8 Amplifier is a high-power subwoofer amplifier designed for integration, with rack-mountable design. It is able to power up to two 100 IWSUB8 passive subwoofers connected in parallel.
- Peak power 200W, continuous power 150W under 4Ώ.

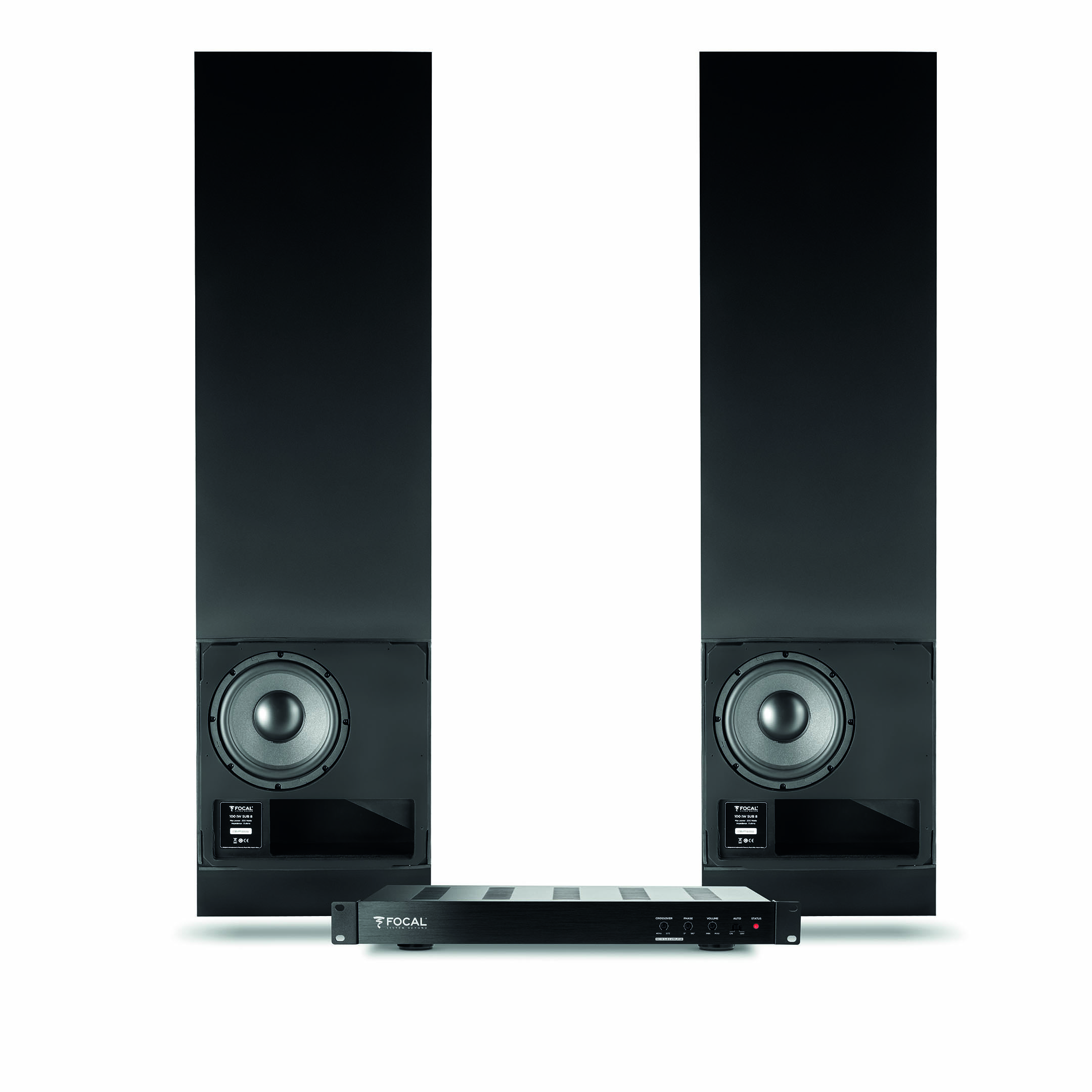

- Amplifier able to drive 2 x 100 IWSUB8 subwoofers connected in parallel.
- High-level electronic protection.
Amplifier
Type | Subwoofer amplifier |
Power (continuous) | Max 200W, 150W continuous (4Ώ) |
Minimum load | 4Ώ |
Voltage range | 100-120V~60Hz / 220-230V~50Hz |
Power consumption | 150W |
Stand-by power consumption | 0.5W |
Bandwith | 20-250Hz |
Subsonic filter | 18dB/oct. |
Inputs | LFE, Line in L/R |
Outputs | Line out L/R and subwoofer power output on speaker terminal |
Cord | Detachable IEC power cord |
Protection | Dynamic power control, thermal protection, short circuit, fuse, and over-current protection |
Dimensions (HxWxD) | 13/4 (21/16 with stands) x 167/8 (19 with brackets) x 101/8” [44.5 x 429 x 257mm] |
Net weight | 6.8lbs (3.1kg) |
